A Clean Wall Behind the TV: Recessed Metal TV Back Boxes
Behind every sleek wall-mounted TV is a tangle of power cords, HDMI cables and streaming boxes. A recessed metal back box tucks it all inside the wall for a clean, safe and professional finish.
At a glance
Solution
Recessed metal TV back box
Suited to
Flush-mounted OLED and QLED TVs
Typical features
Ventilation, cable-tie anchors, modular power outlets
Modern living rooms are a sanctuary of minimalist design. Yet behind the sleek screen and the floating cabinetry lies a persistent challenge: managing the cables and equipment. Power cords, HDMI cables, streaming devices and audio-visual baluns all need somewhere to go.
To solve this, we use structured media enclosures called TV back boxes. A good back box turns a messy entertainment setup into a clean, professional and reliable installation.
Why recess the back box?
The main reason to use a recessed TV back box is visual cleanliness. A modern flat-TV setup often includes several home automation features:
CCTV live view, using a video balun or HDMI over IP
Centralised TV sources
An IR repeater system
IR blasters, to bring TVs into the automation system
Apple TV or Roku streaming devices
Tata Play (formerly Tata Sky) set-top boxes
HDBaseT
A universal remote hub
Audio cables for speakers and soundbars
Power surge protection devices
When a flat-panel TV is mounted flush against the wall, all of these devices, together with surface-mounted power outlets and protruding cable connectors, create a gap. The display can no longer sit flat against the drywall.
A recessed enclosure creates a dedicated cavity behind the TV. All the low-voltage connections, power modules and media accessories sit flush within the wall plane. This removes the awkward "dangling cord" look and lets ultra-thin OLED and QLED displays achieve the clean architectural finish they were designed for.
Illustration: a wall-mounted TV with no visible cables or equipment.
Cable management and strain relief
Beyond looks, professional cable management is critical for the life of both the wiring and the connected hardware. Dangling cables put constant mechanical tension on HDMI ports, optical audio jacks and power inputs.
A quality TV back box has built-in cable-tie anchor points and cable channels, so installers can relieve that tension and route wires neatly. Excess cable can be coiled inside the box, which prevents the kinks that degrade the high-bandwidth signals needed for 4K and 8K HDR content.

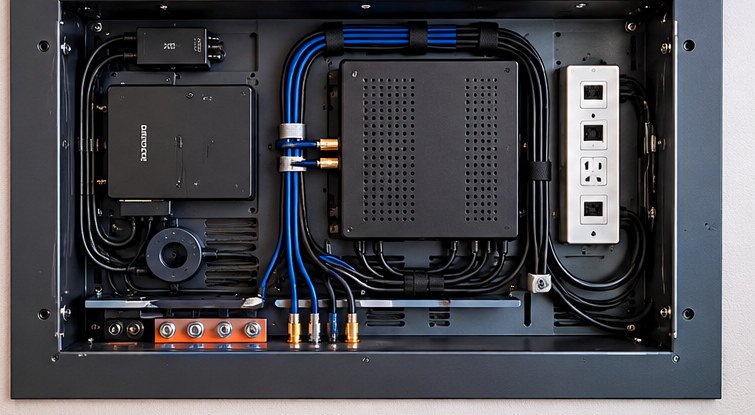

Illustration: the inside of a recessed metal TV back box, with equipment, cables and a power outlet module neatly organised.
Thermal management and safety
As more electronics are packed into a small, enclosed space behind a wall-mounted TV, heat becomes a vital consideration. High-performance streaming boxes and power supplies generate heat that, if trapped, can cause thermal throttling or early equipment failure. Professional-grade back boxes use open-frame construction or ventilated covers that allow passive airflow, which stops heat pockets from forming behind the drywall.
These enclosures are also made from flame-retardant materials that meet electrical code requirements. They keep mains-voltage power connections and low-voltage data lines safely separated, in line with electrical safety standards.

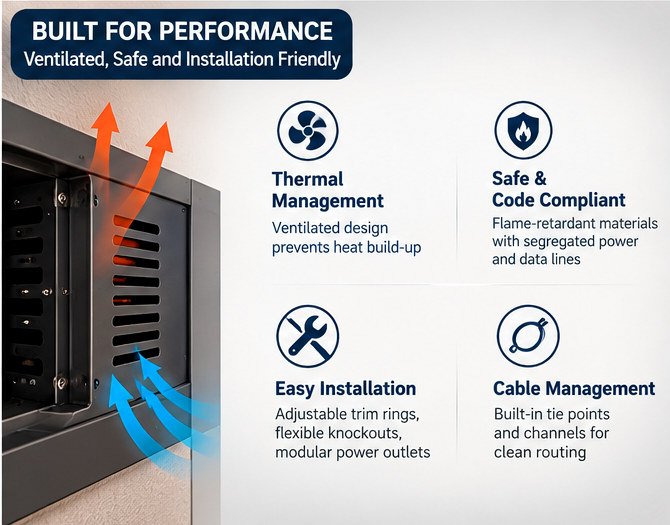

Illustration: ventilation openings let hot air escape from the back box while cooler air flows in.
Efficiency for professional installers
For custom integrators and smart home installers, a standard recessed box makes the rough-in and trim-out stages of a project much faster. Features such as these save valuable time on site:
Adjustable trim rings
Flexible knockouts for conduit entry
Modular AC power outlet options
Installers can pre-wire and terminate connections inside a structured frame. When the TV is hung, the final connection is then both mechanically secure and visually flawless.
